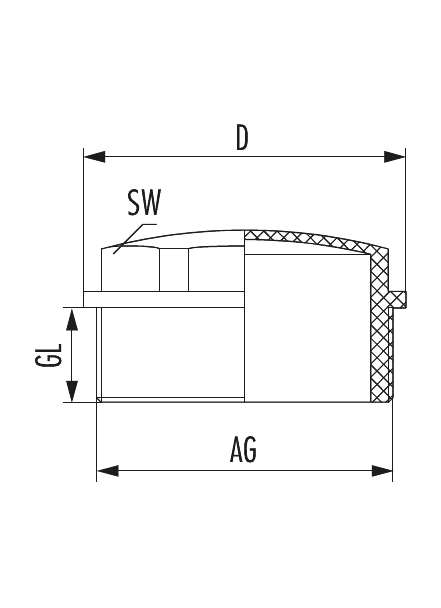

| AG | GL (mm) | D (mm) | SW(mm) | 订货号 | |
|---|---|---|---|---|---|
|
M16 x 1,5
|
9
|
19.8
|
15
|
1.282.1600.50
|
|
|
M20 x 1,5
|
12
|
24
|
19
|
1.282.2000.50
|
|
|
M25 x 1,5
|
12
|
29.5
|
24
|
1.282.2500.50
|
|
|
M32 x 1,5
|
14
|
37.5
|
30
|
1.282.3200.50
|
|
|
M40 x 1,5
|
14
|
45.8
|
37
|
1.282.4000.50
|
|
|
M50 x 1,5
|
18
|
55.8
|
46
|
1.282.5000.50
|
|
|
M63 x 1,5
|
20
|
68.8
|
56
|
1.282.6300.50
|
|
下载3D数据
