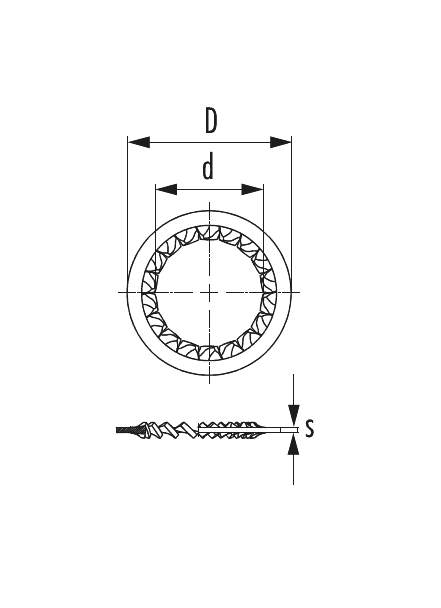

| Suitable for AG | D (mm) | d (mm) | s (mm) | 订货号 | |
|---|---|---|---|---|---|
|
NPT 1"
|
49.5
|
35
|
1.5
|
1.329.1000.70
|
|
|
NPT 1/2"
|
39
|
23.5
|
1.5
|
1.329.1200.70
|
|
|
M16 x 1,5
|
26.5
|
17
|
1.5
|
1.329.1600.50
|
|
|
M20 x 1,5
|
33.5
|
21.5
|
1.5
|
1.329.2000.50
|
|
|
NPT 2"
|
86.6
|
61.5
|
1.5
|
1.329.2000.70
|
|
|
M25 x 1,5
|
39
|
26
|
1.5
|
1.329.2500.50
|
|
|
M32 x 1,5
|
48
|
30.5
|
1.5
|
1.329.3200.50
|
|
|
NPT 3/4"
|
42
|
29.5
|
1.5
|
1.329.3400.70
|
|
|
NPT 3/8"
|
30
|
19.5
|
1.5
|
1.329.3800.70
|
|
|
M40 x 1,5
|
59.5
|
40.5
|
1.5
|
1.329.4000.50
|
|
|
M50 x 1,5
|
71
|
51.5
|
1.5
|
1.329.5000.50
|
|
|
NPT 2 1/2"
|
102.5
|
76.5
|
1.5
|
1.329.5200.70
|
|
|
NPT 1 1/4"
|
59.5
|
44
|
1.5
|
1.329.5400.70
|
|
|
M63 x 1,5
|
87
|
64
|
1.5
|
1.329.6300.50
|
|
|
NPT 1 1/2"
|
71
|
51.5
|
1.5
|
1.329.6400.70
|
|
|
M75 x 1,5
|
102.5
|
76.5
|
1.5
|
1.329.7500.50
|
|
下载3D数据
