Reducer RSD-Ms-Ex with o-ring
Reducers for hazardous areas made of nickel plated brass
认证：

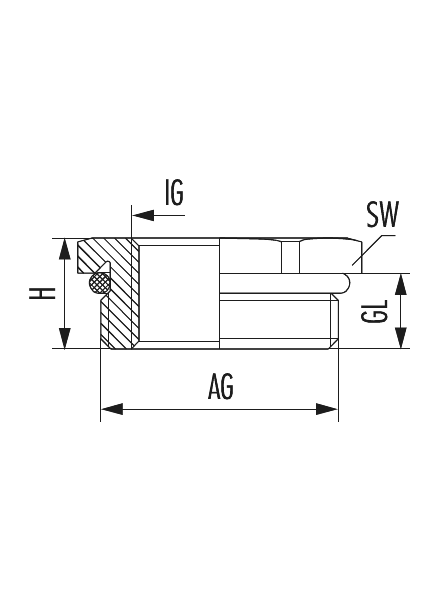

产品结构图
下载3D数据
材料
Nickel-plated brass
Ex-protection level
II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb
o型圈
NBR, VMQ (silicone)
Variant
Metric, PG
防护等级
IP 68 – 10 bar, IP 69 K
Temperature range AG IG GL (mm) H (mm) SW(mm) 订货号
-20°C to +95°C
PG 9
PG 7
6
8.8
17
1.078.0907.01

-20°C to +95°C
PG 11
PG 7
6
9
20
1.078.1107.01

-20°C to +95°C
PG 11
PG 9
6
9
20
1.078.1109.01

-20°C to +95°C
PG 13,5
PG 9
6.5
9.5
22
1.078.1309.01

-20°C to +95°C
PG 13,5
PG 11
6.5
9.5
22
1.078.1311.01

-20°C to +95°C
PG 16
PG 9
6.5
9.5
24
1.078.1609.01

-20°C to +95°C
PG 16
PG 11
6.5
9.5
24
1.078.1611.01

-20°C to +95°C
M16 x 1,5
M12 x 1,5
6
8.5
18
1.078.1612.50

-20°C to +95°C
PG 16
PG 13,5
6.5
9.5
24
1.078.1613.01

-20°C to +95°C
M20 x 1,5
M12 x 1,5
6
9
22
1.078.2012.50

-20°C to +95°C
M20 x 1,5
M16 x 1,5
6
9
22
1.078.2016.50

-20°C to +95°C
PG 21
PG 11
7
10.3
30
1.078.2111.01

-20°C to +95°C
PG 21
PG 13,5
7
10.3
30
1.078.2113.01

-20°C to +95°C
PG 21
PG 16
7
10.3
30
1.078.2116.01

-20°C to +95°C
M25 x 1,5
M16 x 1,5
7
10
29
1.078.2516.50

-20°C to +95°C
M25 x 1,5
M20 x 1,5
7
10
29
1.078.2520.50

-20°C to +95°C
PG 29
PG 16
8
11.5
40
1.078.2916.01

-20°C to +95°C
PG 29
PG 21
8
11.5
40
1.078.2921.01

-20°C to +95°C
M32 x 1,5
M16 x 1,5
8
11
34
1.078.3216.50

-20°C to +95°C
M32 x 1,5
M20 x 1,5
8
11.5
35
1.078.3220.50

-20°C to +95°C
M32 x 1,5
M25 x 1,5
8
11
34
1.078.3225.50

-20°C to +95°C
PG 36
PG 21
9
12.5
50
1.078.3621.01

-20°C to +95°C
PG 36
PG 29
9
12.5
50
1.078.3629.01

-20°C to +95°C
M40 x 1,5
M20 x 1,5
8
12
43
1.078.4020.50

-20°C to +95°C
M40 x 1,5
M25 x 1,5
9
13.5
43
1.078.4025.50

-20°C to +95°C
M40 x 1,5
M32 x 1,5
9
13.5
43
1.078.4032.50

-20°C to +95°C
PG 42
PG 29
10
13.5
57
1.078.4229.01

-20°C to +95°C
PG 42
PG 36
10
15
57
1.078.4236.01

-20°C to +95°C
PG 48
PG 36
10
13.5
64
1.078.4836.01

-20°C to +95°C
PG 48
PG 42
10
13.5
64
1.078.4842.01

-20°C to +95°C
M50 x 1,5
M25 x 1,5
9
13
55
1.078.5025.50

-20°C to +95°C
M50 x 1,5
M32 x 1,5
10
14
54
1.078.5032.50

-20°C to +95°C
M50 x 1,5
M40 x 1,5
9
13
55
1.078.5040.50

-20°C to +95°C
M63 x 1,5
M32 x 1,5
10
14
65
1.078.6332.50

-20°C to +95°C
M63 x 1,5
M40 x 1,5
10
14
65
1.078.6340.50

-20°C to +95°C
M63 x 1,5
M50 x 1,5
10
14
68
1.078.6350.50

-60°C to +180°C
PG 9
PG 7
6
8.8
17
1.079.0907.01

-60°C to +180°C
PG 11
PG 7
6
9
20
1.079.1107.01

-60°C to +180°C
PG 11
PG 9
6
9
20
1.079.1109.01

-60°C to +180°C
PG 13,5
PG 9
6.5
9.5
22
1.079.1309.01

-60°C to +180°C
PG 16
PG 9
6.5
9.5
24
1.079.1609.01

-60°C to +180°C
PG 16
PG 11
6.5
9.5
24
1.079.1611.01

-60°C to +180°C
M16 x 1,5
M12 x 1,5
5
8.5
18
1.079.1612.50

-60°C to +180°C
PG 16
PG 13,5
6.5
9.5
24
1.079.1613.01

-60°C to +180°C
M20 x 1,5
M12 x 1,5
6
9
22
1.079.2012.50

-60°C to +180°C
M20 x 1,5
M16 x 1,5
6
9
22
1.079.2016.50

-60°C to +180°C
PG 21
PG 11
7
10.3
30
1.079.2111.01

-60°C to +180°C
PG 21
PG 13,5
7
10.3
30
1.079.2113.01

-60°C to +180°C
PG 21
PG 16
7
10.3
30
1.079.2116.01

-60°C to +180°C
M25 x 1,5
M16 x 1,5
7
10
30
1.079.2516.50

-60°C to +180°C
M25 x 1,5
M20 x 1,5
7
10
30
1.079.2520.50

-60°C to +180°C
PG 29
PG 16
8
11.5
40
1.079.2916.01

-60°C to +180°C
PG 29
PG 21
8
11.5
40
1.079.2921.01

-60°C to +180°C
M32 x 1,5
M16 x 1,5
8
11
34
1.079.3216.50

-60°C to +180°C
M32 x 1,5
M20 x 1,5
8
11
34
1.079.3220.50

-60°C to +180°C
M32 x 1,5
M25 x 1,5
8
11
34
1.079.3225.50

-60°C to +180°C
PG 36
PG 21
9
12.5
50
1.079.3621.01

-60°C to +180°C
PG 36
PG 29
9
12.5
50
1.079.3629.01

-60°C to +180°C
M40 x 1,5
M20 x 1,5
8
15
43
1.079.4020.50

-60°C to +180°C
M40 x 1,5
M25 x 1,5
9
13.5
43
1.079.4025.50

-60°C to +180°C
M40 x 1,5
M32 x 1,5
9
13.5
43
1.079.4032.50

-60°C to +180°C
PG 42
PG 29
10
13.5
57
1.079.4229.01

-60°C to +180°C
PG 42
PG 36
10
15
57
1.079.4236.01

-60°C to +180°C
PG 48
PG 36
10
13.5
64
1.079.4836.01

-60°C to +180°C
PG 48
PG 42
10
13.5
64
1.079.4842.01

-60°C to +180°C
M50 x 1,5
M25 x 1,5
9
13
55
1.079.5025.50

-60°C to +180°C
M50 x 1,5
M32 x 1,5
10
14
54
1.079.5032.50

-60°C to +180°C
M50 x 1,5
M40 x 1,5
9
13
55
1.079.5040.50

-60°C to +180°C
M63 x 1,5
M32 x 1,5
10
14
65
1.079.6332.50

-60°C to +180°C
M63 x 1,5
M40 x 1,5
10
14
65
1.079.6340.50

-60°C to +180°C
M63 x 1,5
M50 x 1,5
10
14
68
1.079.6350.50
